單級中壓泵與雙級高壓泵

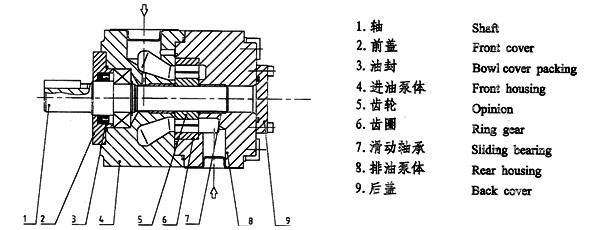

單級中壓泵
single-stage Pump for Medium Pressure
型號
Model 		公稱排量
Norminal displacement
m1/r 		壓力MPa
Pressure 		轉速上限
Max.speed
r/min
額定
Rated 		上限
Peak
SFB1-D5F 5 12.5 16 3000
SFB1-D6F 6
SFB1-D8F 8
SFB2-D10F 10 3000
SFB2-D12F 12
SFB2-D16F 16
SFB3-D20F 20 3000
SFB3-D25F 25
SFB3-D32F 32
SFB4-D40F 40 2000
SFB4-D50F 50
SFB4-D63F 63
SFB5-D80F 80 2000
SFB5-D100F 100
SFB5-D125F 125

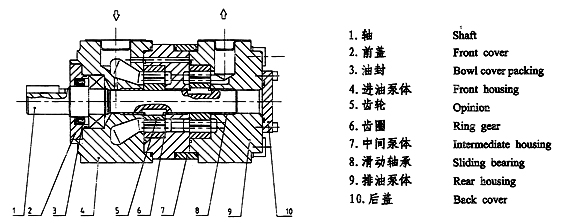

雙級高壓泵
Single-stage Pump for High Pressure

型號
Model 		公稱排量
Norminal displacement
m1/r 		壓力MPa
Pressure 		轉速上限
Max.speed
r/min
額定
Rated 		上限
Peak
SFB1-G5F 5 25 32 3000
SFB1-G6F 6
SFB1-G8F 8
SFB2-G10F 10 3000
SFB2-G12F 12
SFB2-G16F 16
SFB3G20F 20 3000
SFB3-G25F 25
SFB3-G32F 32
SFB4-G40F 40 3000
SFB4-G50F 50
SFB4-G63F 63
SFB5-G80F 80 3000
SFB5-G100F 100
SFB5-G125F 125
